Graphics Loader

Introduction

For this assignment, we had to shift our focus from curating a gameplay experience and instead had to focus on how game graphics can be generated and managed manually. This was explored through using OpenGL to create systems that manually built primitive shapes, whilst loading textures and more complex shapes from file.

As the systems were all being built outside of an engine, all of the development was up to me which gave me an opportunity to learn about memory management and using Visual Studio to track where memory is being assigned. This could then be used to track issues such as when memory leaks would appear and helped break down how the issue could be tackled.

OBJ File Loader

This project uses file loading to assign values in a more concise manner for primitive shapes, taking the values for vecrtices, indices and faces. This is a simple level of file usage when used alongside primitivies, but this level of simplicity is not compatible when using OBJ files.

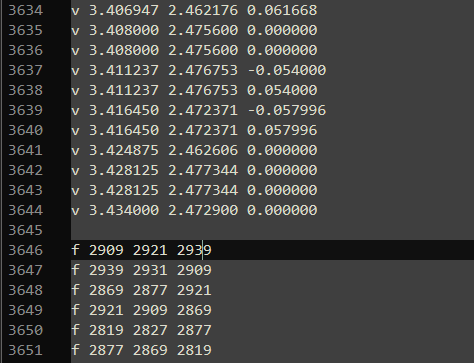

To create my OBJ file loader, I found many sources leading me towards using text manipulation to find all of the needed values and correctly assigning them to their variables through using ‘f’ for indices and ‘v’ for vertices, furthermore subtracting the indices by 1 from all index readings from the file, as the file starts counting from 1 not 0. Using a C++ vector (also known as a list), we can store all the needed values as they are read to be used later to build the object at runtime.

I found it difficult to understand how I could build the system from the ground up, alongside my pre-established systems. After finding a tutorial that helped me understand and doing deeper research into OpenGL and graphical programming as a whole, I was able to successfully create the system that can be found below. My goal in the future is to make it more robust in order to support a larger variety of OBJ files.

Code - OBJ Loader

Scene Management

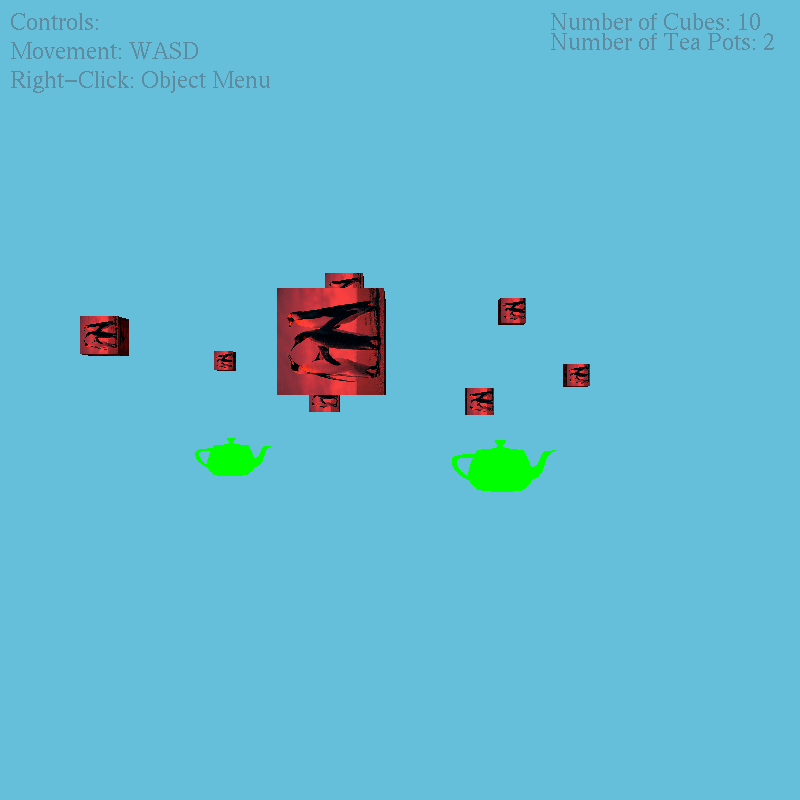

The management of the scene was the most worked on aspect throughout development. Starting at manually drawing each primitive, to recycling data usage with files and then moving to implementing arrays that were finialised as Linked Lists, with each linked list being used to split scene objects into shape catorgories. Changing between these management styles often called for iterative practices, revisting and reevaluating old code to work with the updated mangement of the objects. While arrays aren't slow, I wanted to implement dynamic changes to the lists at run time, such as changing individual values, or even removing an object entirely. I am working on polishing the ability to remove objects, yet the system is still used to dyanamically change the objects values at runtime.

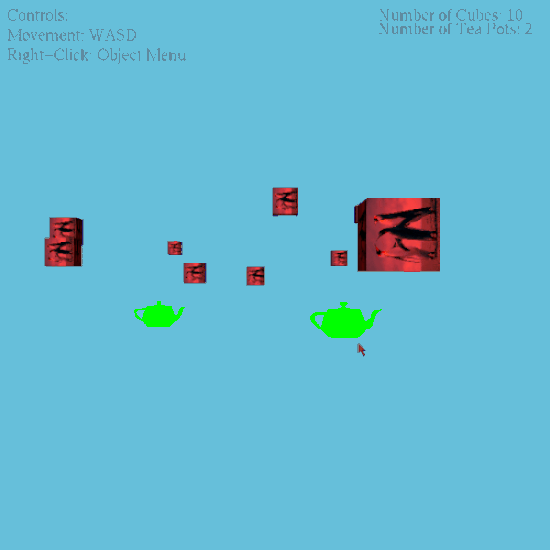

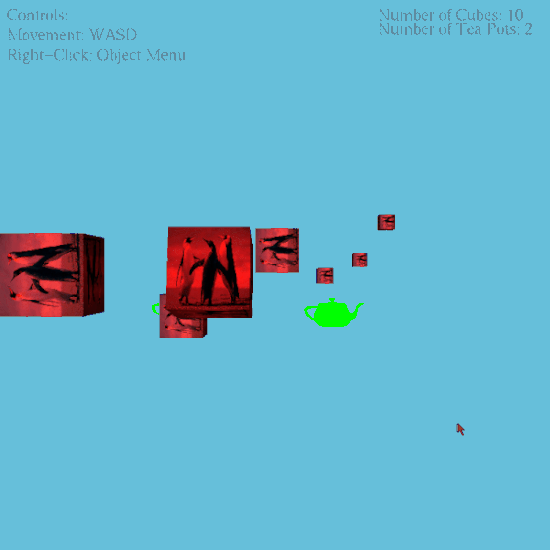

I included a selection menu in this project, with the primitive objects inside a scene being able to be selected. When an object is selected, its texture will be swapped out as well as the camera becoming locked onto the selected texture. This is done so that the user can view the object from any angle by spinning the object in place, in any way they please. To improve the camera controls, I made the decision to split it into its own class to allow for more dynamic/realistic controls when moving around the scene. I came into conflict with this, as I had simply been moving the cameras eye and not its world position but in taking the time to understand the camera within graphics programming was the single most important learning experience of this project. It meant that I could begin to understand how a scene is actually generated, and how this is translated so that it can be viewed at runtime. In future I will implement a free-flying camera within graphics scenes, as currently the camera can only be moved in world space along a certain plane.

What was Learnt

While I have programmed a variety of programs throughout my studies and personal projects, building this graphics scene was definitely one of the most challenging. This isn't a negative thing however as this project was a chance to sit down and truly understand systems that I only had a surface knowledge of before. I have always strived for optimisation within my code, and having to manage memory and finding the sources of memory leaks as they occurred were invaluable lessons in understanding my own coding and how it can be used most effectively.

On the topic of graphics itself, I have a new found appreciation for the time and effort needed for the graphics found in games today. I hope to build on my knowledge and apperication as I progress ahead with my programming career and this project has helped me understand the time and dedication needed to achieve the high quality results seen as the standard in modern games design.

Project Repository
